100Kg Base Mount Drawer Slides – Zinc
$85.00 – $290.00

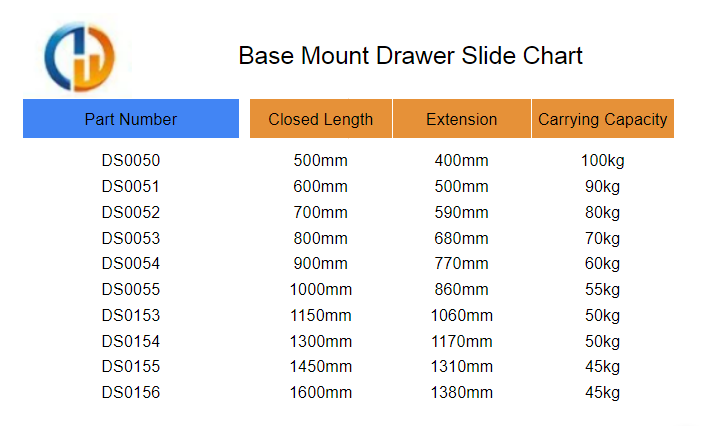

- Available In Lengths 500mm – 1600mm
- Zinc Plated
- Each Purchase Contains The Pair
- Drawer Slides weight approximately 510 grams per 100mm
- Refer FAQ Tab for common drawer slide related questions

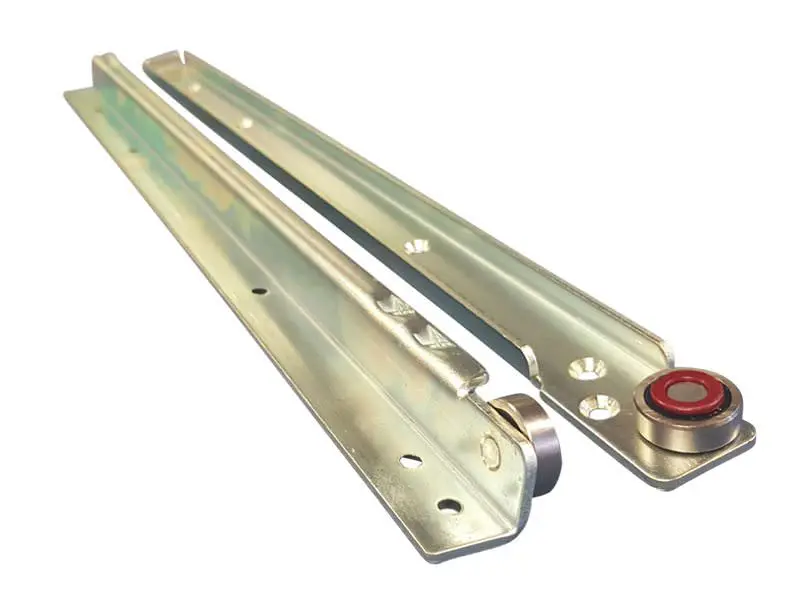

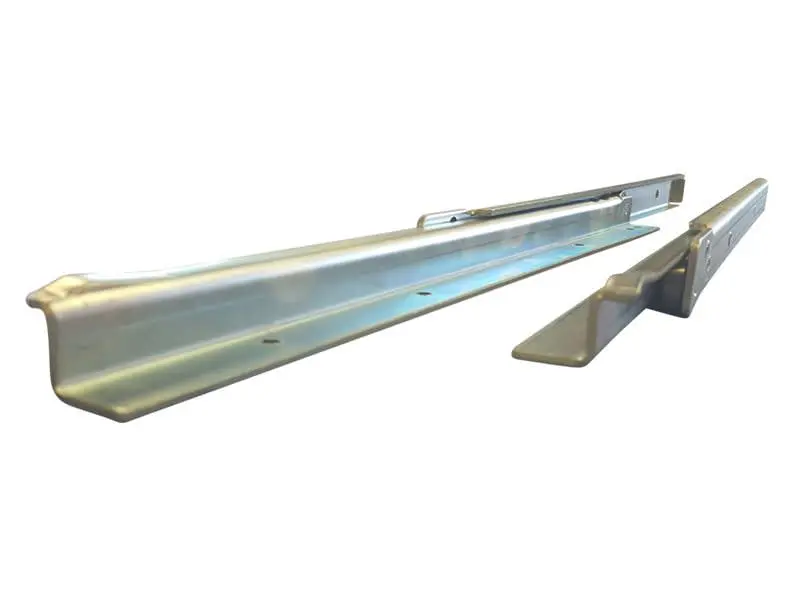

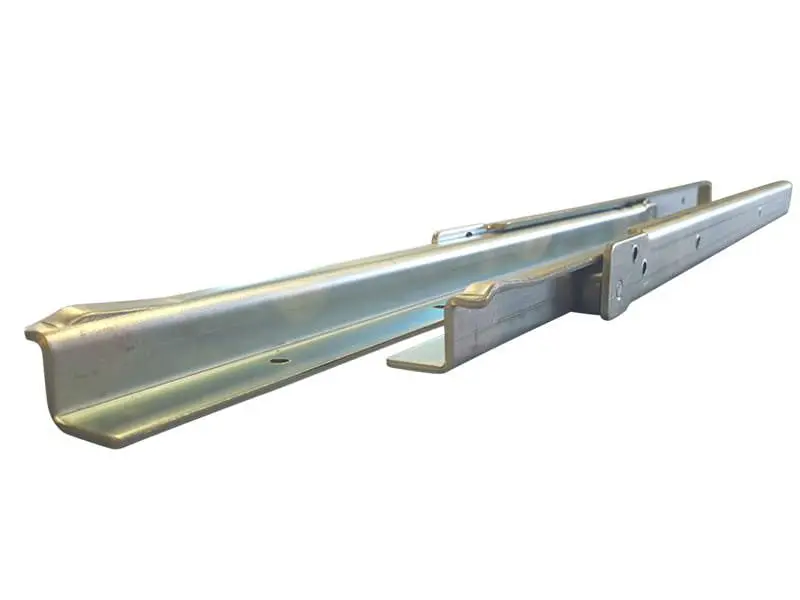

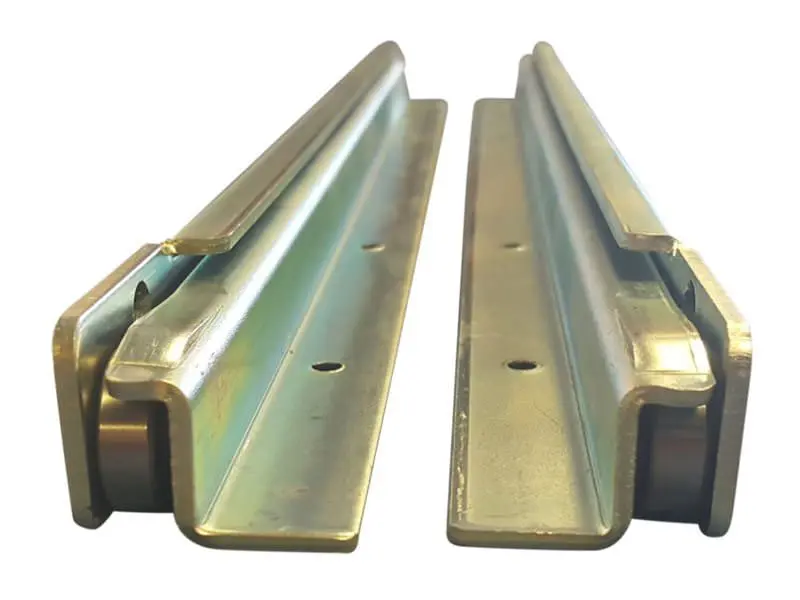

100kg Base Mount Drawer slide, perfect for cargo drawers. Sealed bearings make these drawer slides perfect for dusty or dirty environments.
Heavy-duty galvanized drawer slides rated to 100kg’s at 500mm square. These soft roller drawer runners are commonly referred to as base mount drawer slides and are heavily used for pull out fridge slides and 4×4 vehicle drawer systems on 4WD’s, caravans, utes, vans and camper trailer units. These drawer slides operate off a sealed bearing at either end of the track, the advantage of this is the slides are resistant to getting dust and dirt clogged in the runner mechanism.
Only logged in customers who have purchased this product may leave a review.
FAQs
Is the advertised length extended or closed?
The sizes noted are the length of the runners from nose to tail in a closed position.
Does Base Mount I can fit these to the floor?
No, these runners still require a vertical wall to fit to. If you don't have access to side walls you can fit angle bar to the floor and use the vertical side of this extrusion as your side wall for installing the runners. The term base mount is used for these slides as you can drop your drawer into the base of the runners.
