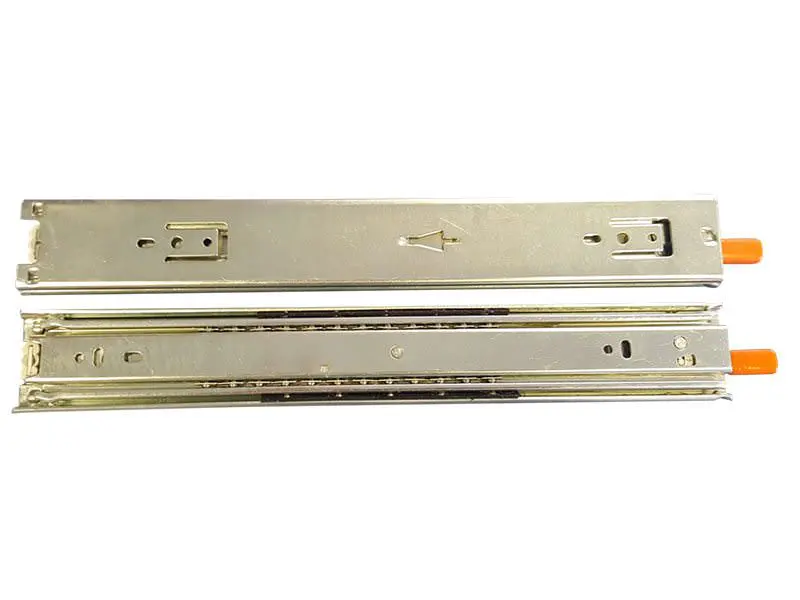

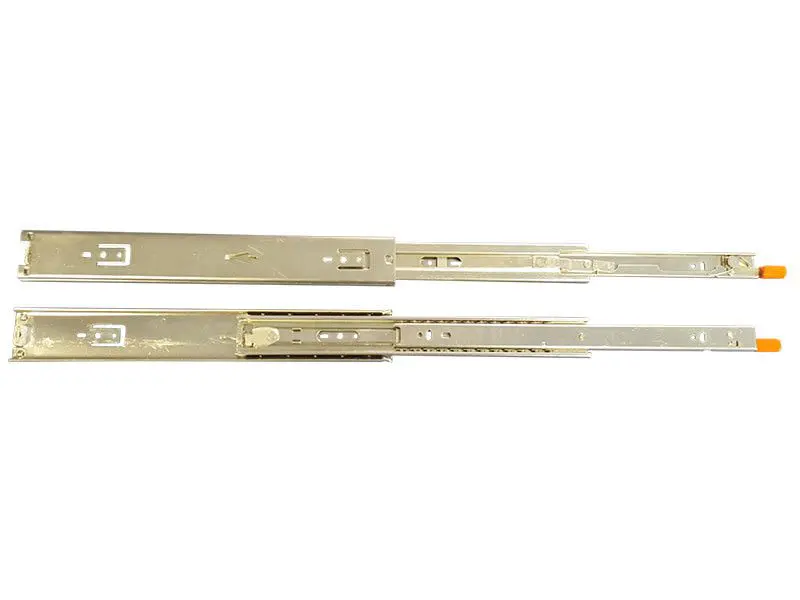

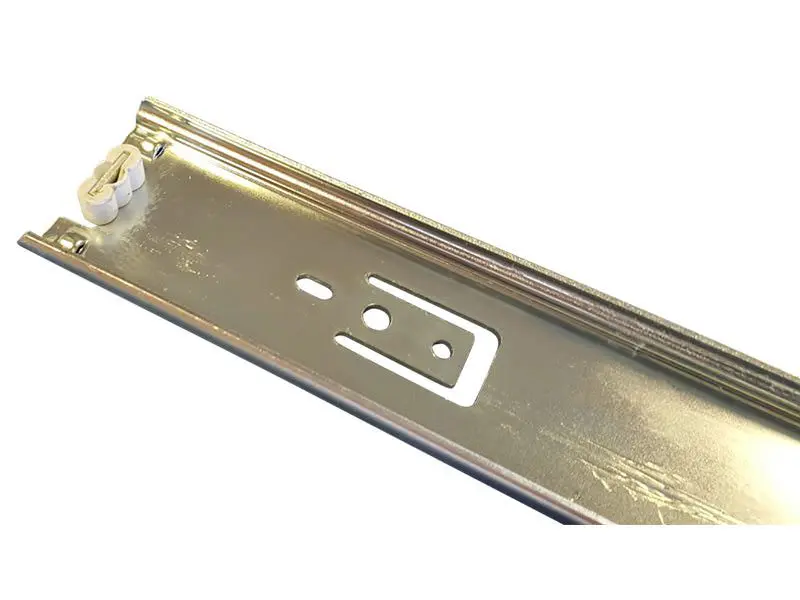

60Kg Achillies Series Locking Drawer Slides

Yes, all our drawer slides are sold in pairs. This means you get a left and right hand runner, enough to build one drawer.

You must either have both non locking or locking drawer slides. Splitting the pairs doesn't last long term. One locking leaver struggles to keep your drawer square and leads to failure of the locking mechanism in the future and voids your warranty. To counter this issue we have developed a locking leaver bar so one hand can operate both locking leavers at the same time. Please see link for leaver bar kits https://trailerpartsdirect.com.au/shop/drawer-slides/drawer-slide-accessories/227kg-locking-leaver-bar-latch/

There is a video demonstration on this page that shows how to disconnect and re-connect your drawer slide. If you are still unsure we recommend you contact our customer service team for assistance before any damage is caused to the runner 1300210549.

No, drawer slides must be installed vertically. Whilst they will operate laying flat, they are not designed to work this way and there is no load rating for a flat mounted install. Installing your drawer slides flat will also void your warranty.

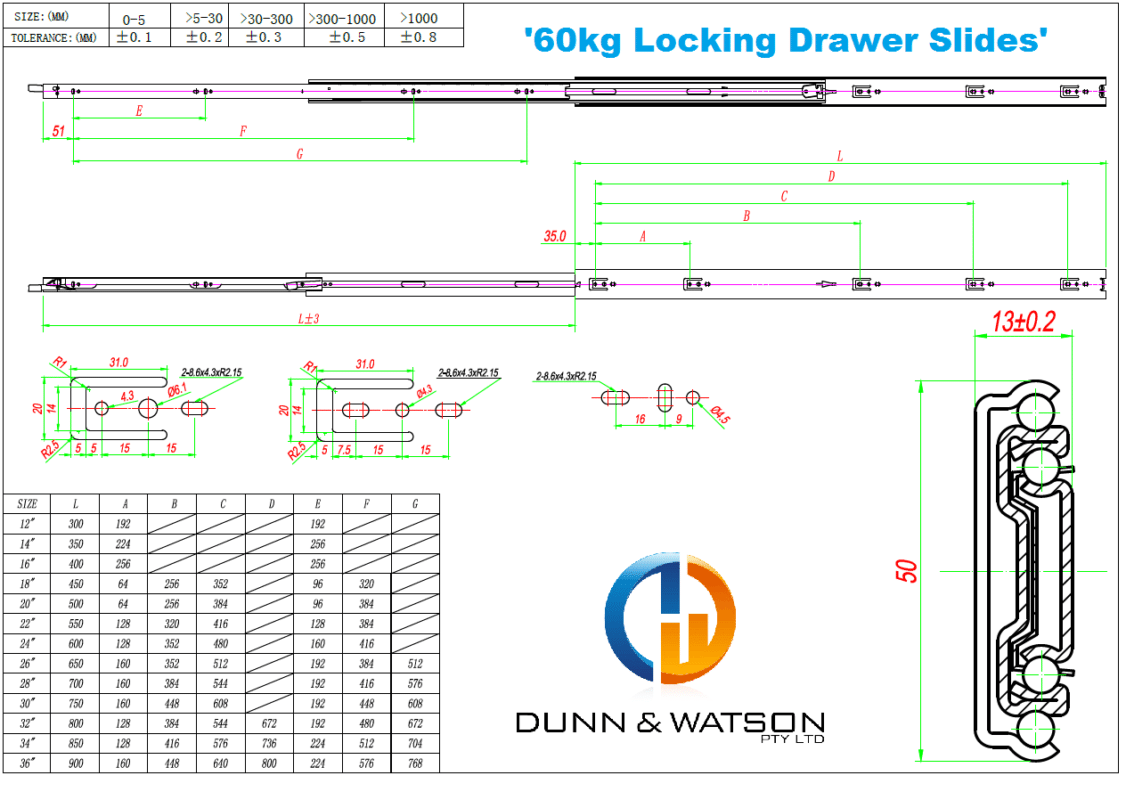

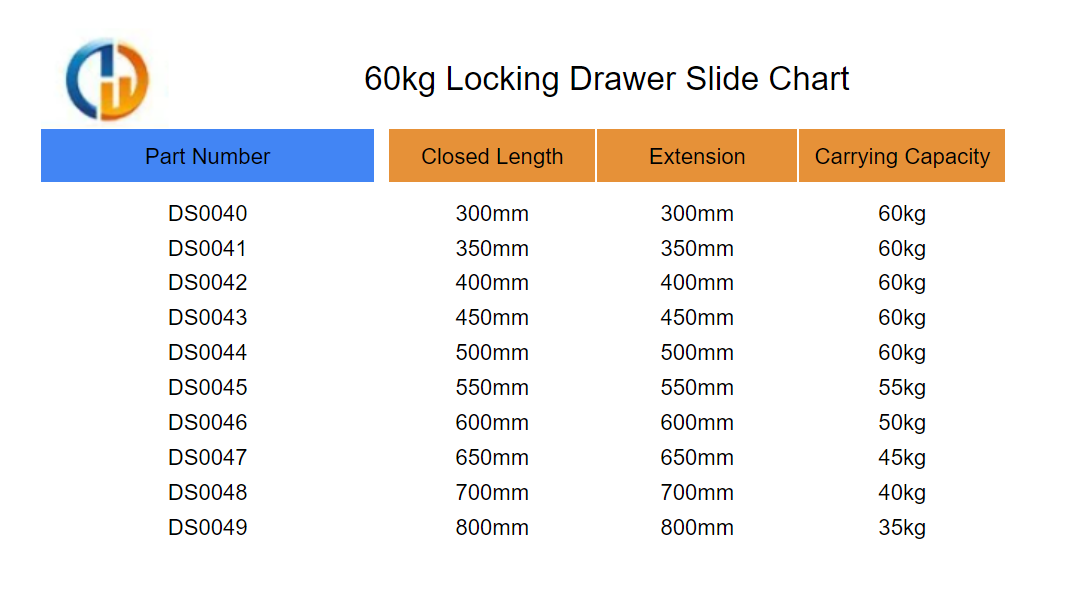

The sizes noted are the length of the runners from nose to tail in a closed position. This closed length the leaver tab at the front of all locking slides. These tabs add +30mm to the overall closed length noted.

Bolts used in drawer slide install must have a low profile head. Any bolt head too bulky will result in them colliding inside the slide during the opening and closing process. For 125kg and 227kg series drawer slides Dunn & Watson recommend 5mm bolts and nuts.
