227Kg Titan Series Standard Drawer Slides
Price range: $115.00 through $395.00
- Available In Lengths 406mm – 2007mm
- Weight capacity: 227kg (Based on 500mm square drawer system as you go longer and wider carrying capacity reduces)
- Material made from: high strength cold rolled steel.
- Cycle tests in manufacture: 50,000 cycles.
- 100% extension: 100% extension
- Each Purchase Contains The Pair
- Drawer Slides weight approximately 911 grams per 100mm (Per Pair)
- Refer FAQ Tab for common drawer slide related questions
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Dunn & Watson 227kg Non-Locking Drawer Slides – Heavy-Duty Performance for Demanding Applications
The Dunn & Watson 227kg Non-Locking Drawer Slides are engineered for maximum strength and reliability, making them ideal for heavy-duty applications in camper trailers, caravans, canopies, and custom vehicle drawers. These slides provide full extension and are available in lengths ranging from 356mm to 2007mm, catering to various installation needs.
Key Features:
-

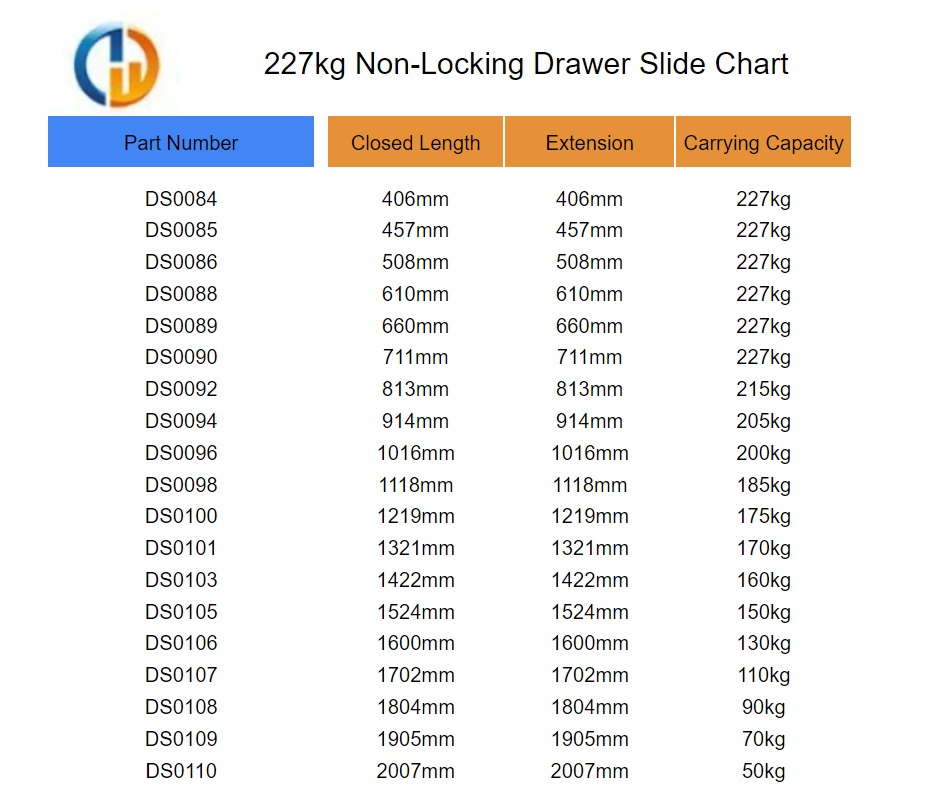

Weight Capacity: 227kg (based on a 500mm square drawer system; capacity decreases with increased length or width)
-
Available Lengths: 356mm to 2007mm
-
Material: High-strength cold-rolled steel with a durable zinc-plated finish
-
Extension: Full extension for maximum access
-
Installation: Simple installation process
-
Weight per Pair: Approximately 911 grams per 100mm (Per Pair)
-
Cycle Testing: Tested to 50,000 cycles to ensure longevity
Applications:

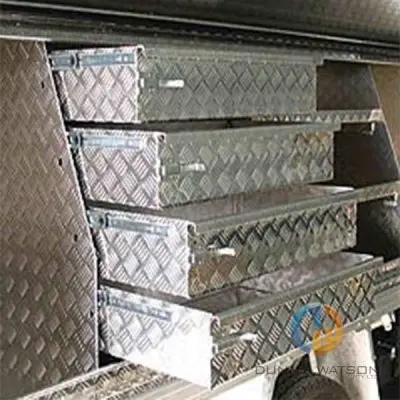

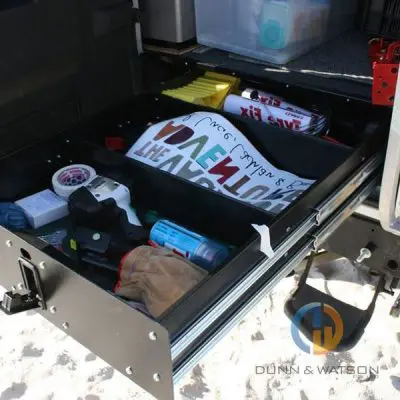

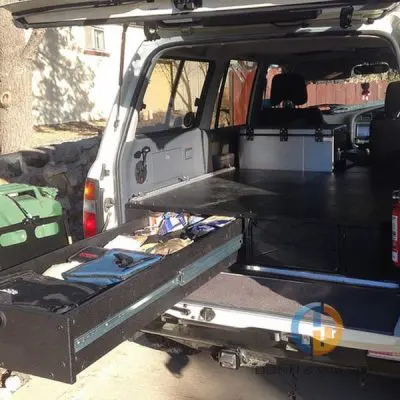

These drawer slides are commonly used in the manufacture of camper trailers, caravans, vehicle custom drawers, and canopies. Their robust design makes them suitable for both working and leisure environments. These runners are often used alongside other Dunn & Watson products such as locks & handles, gas struts, trailer hinges, and foam & rubber seals.
Only logged in customers who have purchased this product may leave a review.
FAQs
Are these drawer slides sold by the pair?
Yes, all our drawer slides are sold in pairs. This means you get a left and right hand runner, enough to build one drawer.
Can I run one locking and one non locking drawer slide on my setup?
You must either have both non locking or locking drawer slides. Splitting the pairs doesn't last long term. One locking leaver struggles to keep your drawer square and leads to failure of the locking mechanism in the future and voids your warranty. To counter this issue we have developed a locking leaver bar so one hand can operate both locking leavers at the same time. Please see link for leaver bar kits https://trailerpartsdirect.com.au/shop/drawer-slides/drawer-slide-accessories/227kg-locking-leaver-bar-latch/
How do I disconnect and rec-connect slides?
227kg Series drawer slides are not dis-connectable. This is a safety reason as they are able to carry far too much load to be able to pull apart.
Can I lay these flat for install?
No, drawer slides must be installed vertically. Whilst they will operate laying flat, they are not designed to work this way and there is no load rating for a flat mounted install. Installing your drawer slides flat will also void your warranty.
Is the advertised length extended or closed?
The sizes noted are the length of the runners from nose to tail in a closed position. This closed length the leaver tab at the front of all locking slides. These tabs add +30mm to the overall closed length noted.
What size bolts do I use for install?
Bolts used in drawer slide install must have a low profile head. Any bolt head too bulky will result in them colliding inside the slide during the opening and closing process. For 125kg and 227kg series drawer slides Dunn & Watson recommend 5mm bolts and nuts.
Why has my rear stopper fallen off or damaged?
Slamming your drawer can bend the rear fitting holding your stopper in place. Movement of this fitting from excessive force changes the stationary location of the stopper designed to run parallel with the slides. Once this stopper is no longer in its original position it collides with the slides cause pieces of it to beak off and evenly fall apart.
Why is my drawer rattling forwards and backwards?
Slamming your drawer causes your rear stopper to move (Refer FAQ above 'Why has my rear stopper fallen off or damaged?'). The factory location of the rear stopper keeps your runner in a tight position at its true 0% extension, when the rear stopper is moved due to slamming it creates play in the slide to rock between it's original 0% extension point and the gap to the moved stoppers new location. Bending the stopper forward to its original location will eliminate this play.
